AP Racing Radi-CAL C8 Front and Rear Brake Kits

$6,699.00 USD

Sale Sold out

Caliper and Rotor Front CP9668 / 390mm Rotor Front CP9668 / 372mm Rotor Front CP9660 / 372mm Rotor Rear 9669 / 378mm Rotor Rear 9661 / 378mm Rotor

Finish Anodized Nickel Plated

Quantity

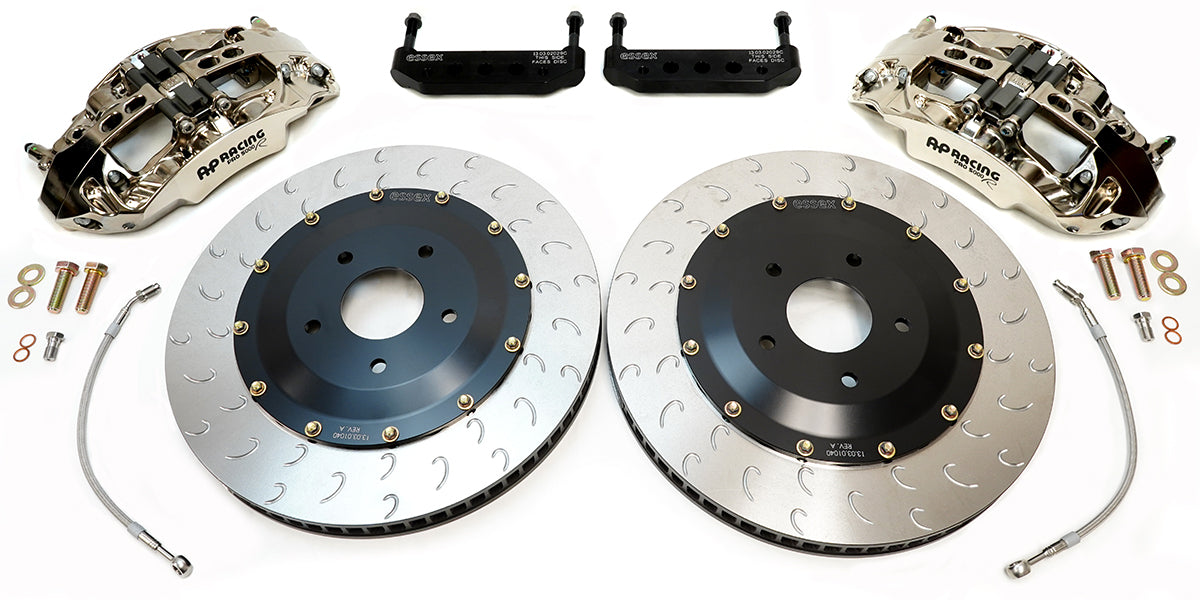

The C8 Radi-CAL Competition Brake Kit (All Trim levels) Base Z51 and Z06

Features AP Racing CP9668 Radi-CAL Pro5000R six piston calipers that use 25mm (1 inch) thick pads

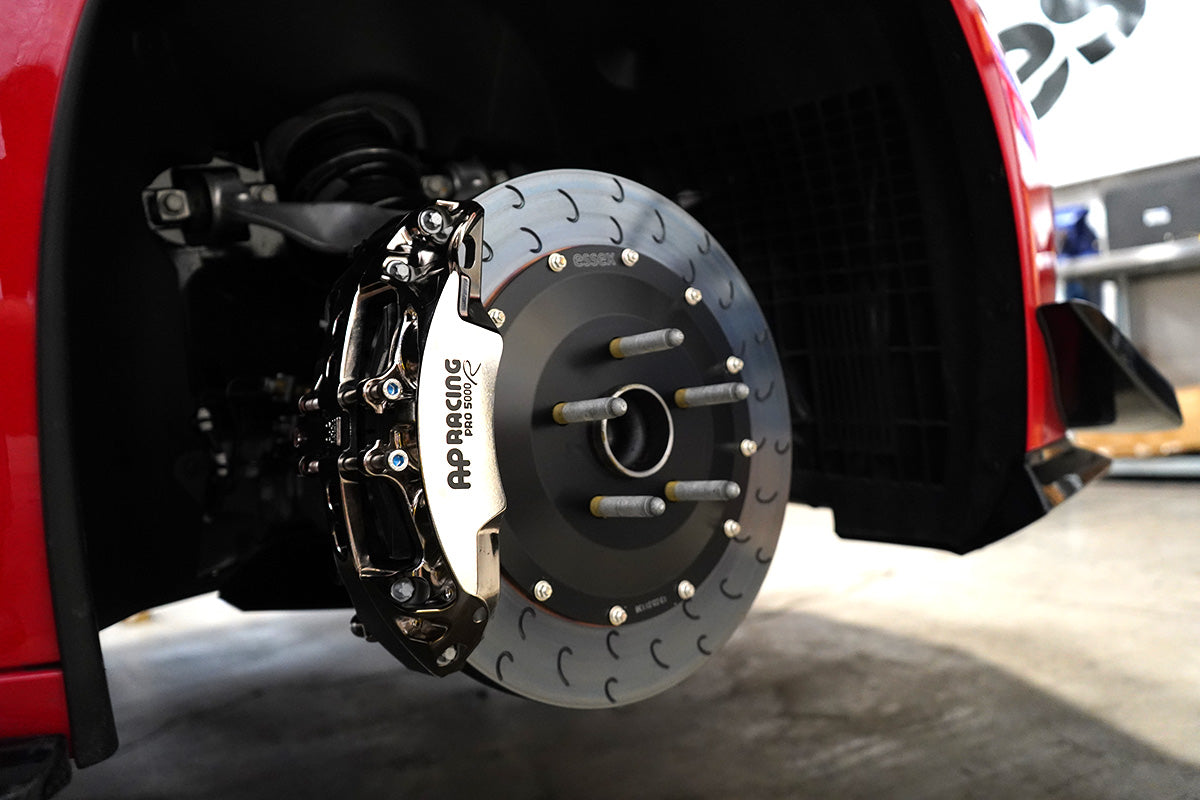

Clears OEM C8 front wheels without a spacer
390x36mm or 372mm 72 vane AP Racing J Hook iron discs
Every component designed to resist the heat of extended track sessions
Pistons sized properly to allow for seamless integration with OEM master cylinder and ABS system

Complete front AP Racing by Essex Radi-CAL Competition Brake Kit for the C8 Corvette Base and Z51:

Saves approximately 14 unsprung lbs. from nose vs. OEM Z51 brakes
Features AP Racing CP9660 Radi-CAL calipers
372x34mm, 72 vane AP Racing J Hook discs
Every component designed to resist the heat of extended track sessions
Pistons sized properly to allow for integration with OEM master cylinder and ABS system
Designed to work with OEM rear brakes or our Essex/AP Racing rear BBK

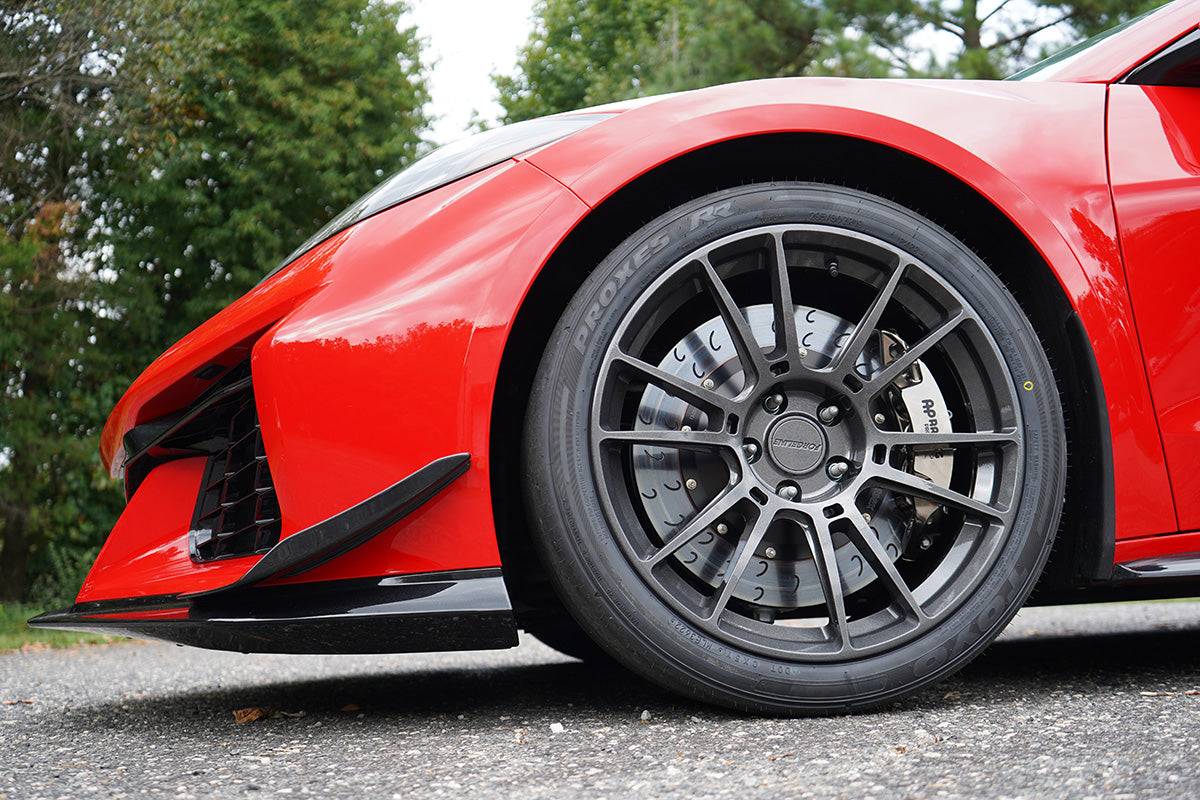

Fits behind OEM 'Trident' wheels without a wheel spacer

Fits: Front (2024 Chevrolet Corvette Z07 Carbon Ceramic (J57))

The AP Racing ENP (Electroless Nickel Plated) finish is a durable, low-porosity coating for their high-performance brake calipers, offering superior corrosion resistance, easy cleaning, and resistance to brake fluid staining, making it ideal for demanding track use while maintaining a jewel-like appearance. This tough, uniform finish, applied to complex aluminum caliper bodies, resists scratches and chips better than paint and provides a hard, long-lasting surface even under extreme heat and chemical exposure, perfect for competition

CARBON BRAKE CARS, Please note:

Due to the OEMs increase in brake piston area and finely tuned ABS for Carbon brakes, we do not recommend the AP kit for this model. As the development mule for this platform along side Essex/AP, we struggled with braking performance until the stock calipers were re-installed.

Initially, we thought the struggle in braking performance was the carbon brake vs Iron brake, but we have since learned and run exceptionally fast on the Girodisc Iron brake setup that this is not the case, and the issue stems from the Lack of piston area that the AP calipers offer.

OEM Carbon brake front caliper piston area is 5500mm^2 vs the AP at 5000mm^2. The OEM rear caliper piston area is 4572mm^2 vs the AP at 3970mm^2.

The OEM iron brake cars (Z51, Z06) have similar piston area as AP kit (Minus a bias change with rear caliper differences) and have shown positive results with the AP Big brake kit.

All Trim level Front Kit Part numbers:

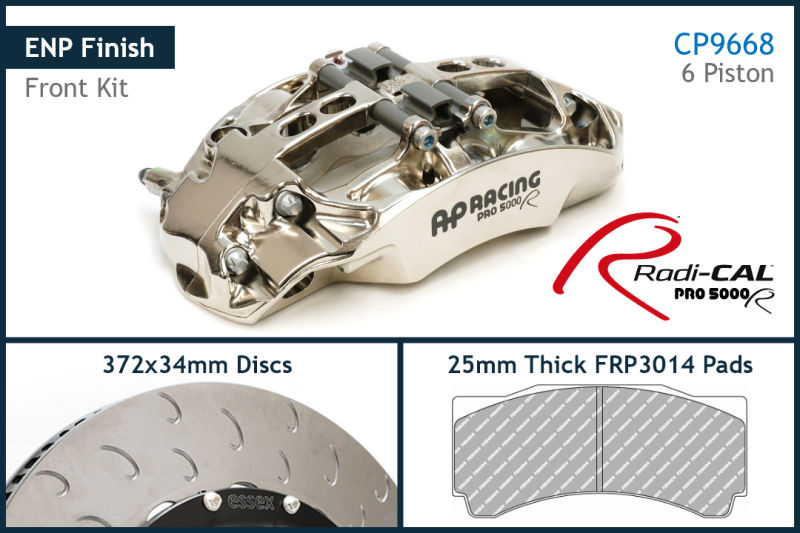

13.01.10192-ENP Nickel 9668 Caliper w/ either 390mm / 372mm Rotor (25mm pad)

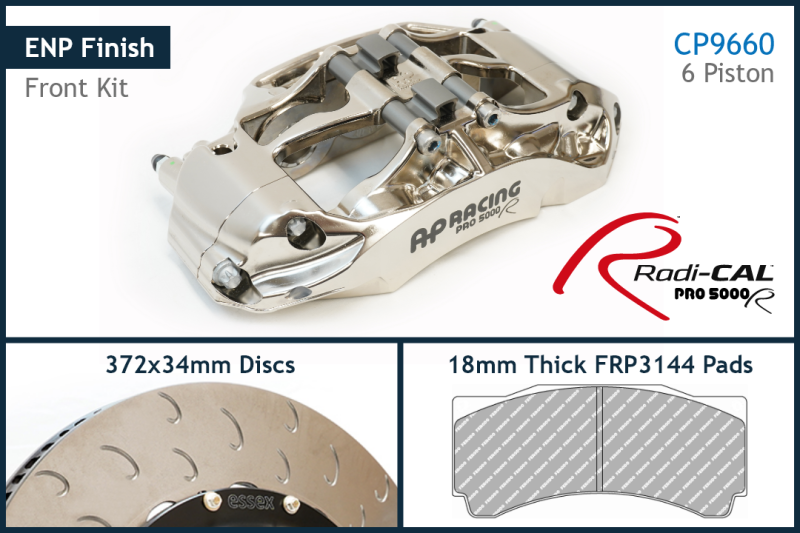

13.01.10128-ENP Nickel 9660 Caliper w/ 372mm Rotor only (18mm pad)

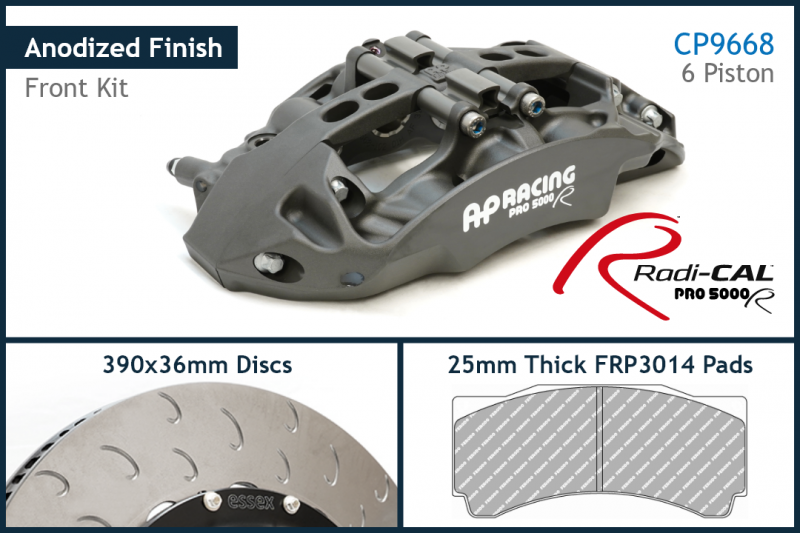

13.01.10192 Anodized 9668 Caliper w/ either 390mm / 372mm Rotor (25mm pad)

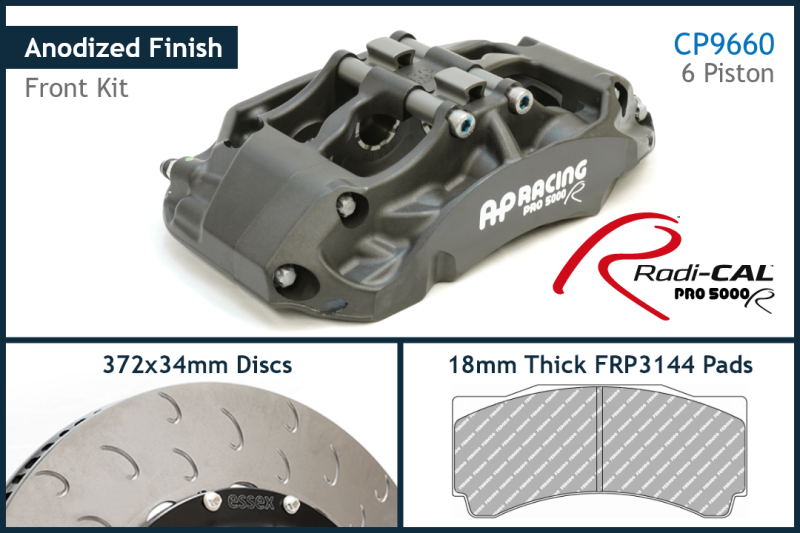

13.01.10129 Anodized 9660 Caliper w/ 372mm Rotor only (18mm pad)

All Trim level Rear Kit Part numbers:

13.01.10194-ENP Nickel 9669 Caliper w/ 378mm Rotor (25mm pad)**

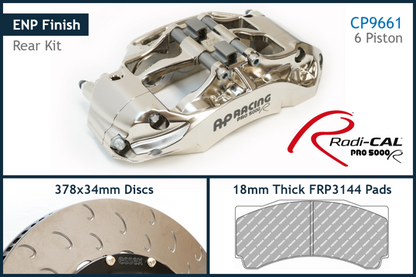

13.01.10193-ENP Nickel 9661 Caliper w/ 378mm Rotor (18mm pad)**

13.01.10194 9669 Anodized Caliper w/ 378mm Rotor (25mm pad)**

13.01.10193 9661 Anodized Caliper w/ 378mm Rotor (18mm pad)**
